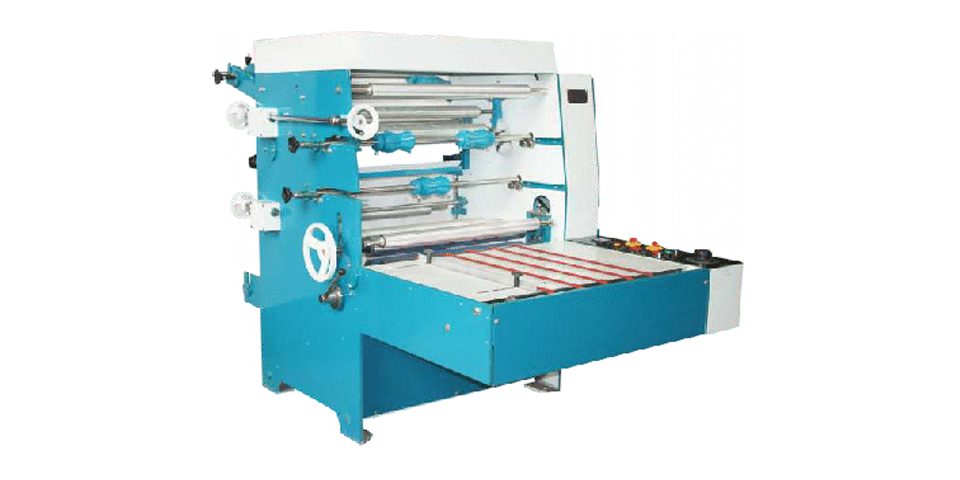

LLM Series laminator using non-toxic water based glue as adhesive to laminate, overall cost is lowest compare to existing method of lamination.
The Salient Features are :
- Dissolving printing powder and snowy points.
- Superb variable DC speed control
- Film slitting system provided with the machine.
- Window-attachement can be provided with the machine against extra cost.
TECHNICAL SPECIFICATIONS:
|
MODEL |
LLM-26 |
LLM-32 |
LLM-40 |
|
Max. working width (m/min) |
680 |
810 |
1070 |
|
Max. feed speed (m/min) |
1-40 |
1-40 |
1-40 |
|
Power |
AC 220V 1.75 KW |
AC220V 2.25 KW |
AC220V 3 KW |
|
Dimensions (mm) |
2080X1260X1380 |
2080X1420X1380 |
2080X1620X1380 |
|
Weight (kg) |
650 |
800 |
950 |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
