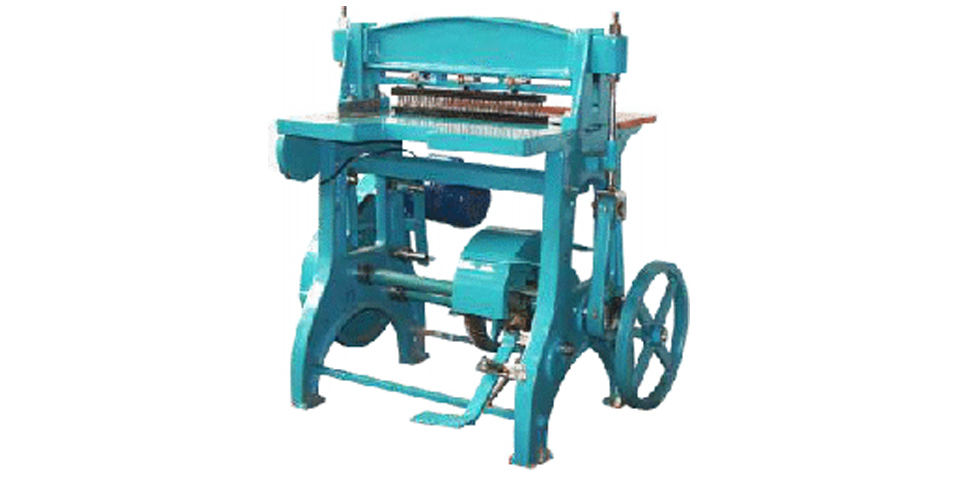

A most useful and suitable machine for every kind of file manufacturing and spiral or wiro jobs. The machine can be operated for any type of jobs with the dies settings:
1. Round hole punch for ring.
2. Four hole punching for index arch lever fitting.
3. Two hole punching for clip of ring.
4. Corner tin strip Pressing Die.
5. Ajustable file Creasing Die.
6. Index Cutting
7. Spiral Punching
8. Wiro Punching
9. Round Corner
10. Half Round Cut Punch
TECHNICAL SPECIFICATIONS:
|
MODEL |
LFM-600 |
|
Max. Table Size |
600mm |
|
Max. Die Width |
450mm |
|
Max. Punching Thickness |
3mm |
|
Dimensions w x d x h |
1150 x 825 x 1070 mm |
|
Machine Weight |
400 kg. |
|
Main Motor Load |
.7 kva/1hp |
|
Electric Supply |
220-240V, 50Hz |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
