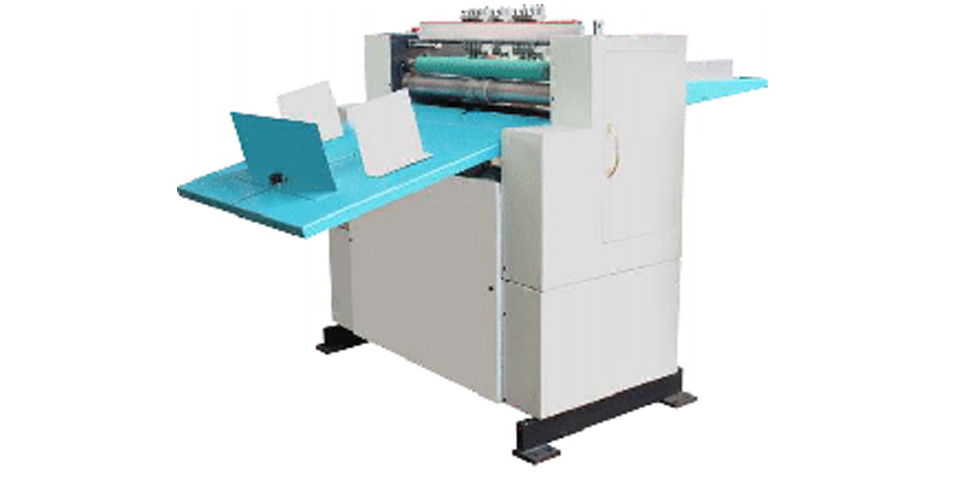

Auto Creaser is the new and revolutionary machine in graphic art and digital printing markets to obtain creasers without any "Fibre Cracking" on paper, perforating. Micro perforating and half cutting at a high speed.
The Salient Features are :
- Manual or Automatic feeder giving a professional finish with a high production output.
- Simple batch counter is provided in the machine for counter the sheets.
- Title book cover creasing can also be done on the machine.
- Adjustable feeding speed to suit the specific needs of the job in-hand.
TECHNICAL SPECIFICATIONS:
|
Model |
LICP-24 |
|
Max. Infeed Width |
600mm |
|
Min. Infeed Width |
120mm |
|
Paper Weight |
60 to 400gsm |
|
Max. Pile Height |
50 mm |
|
Speed |
3000 sheets/hour |
|
Dimensions w x d x h |
1000 x 1600 x 1070 mm |
|
Machine Weight |
150 kg |
|
Main Motor Load |
.7 kva/1hp |
|
Power Consumption |
1 hp |
|
Electric Supply |
220-240V, 50 Hz |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
