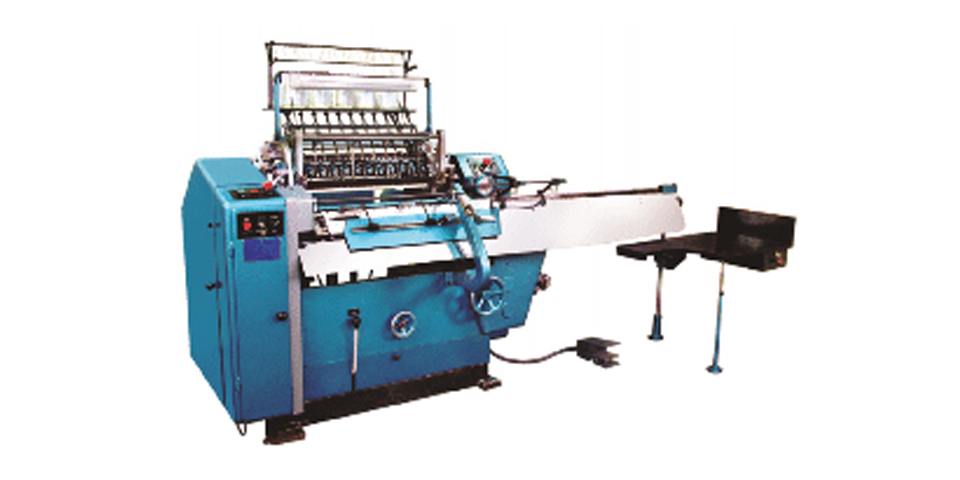

The ideal choice for customers who need to process all kinds of Signatures. This machine enables to provide easy operation, quick make-ready, high quality sewing and high output.
The opening head includes the Lap opener. A programmable device for mechanical opening of signatures with high and low folio lap anywhere in the book. The lap opener is practiculary helpful with come-and-go signatures. The minimum lap required is 8mm.
TECHNICAL SPECIFICATIONS:
|
Model |
LMC - 150 |
|
Maximum Speed |
100 to 150 Section/mm |
|
Largest Size of book |
380 x 320 mm |
|
Smallest Size of book |
80 x 150 mm |
|
Number of Stitches |
up to 11 heads |
|
Signature Opening |
3 Bottom & 3 Upper Opening |
|
Dimensions LxWxH |
130cm x 53cm x 60cm |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
