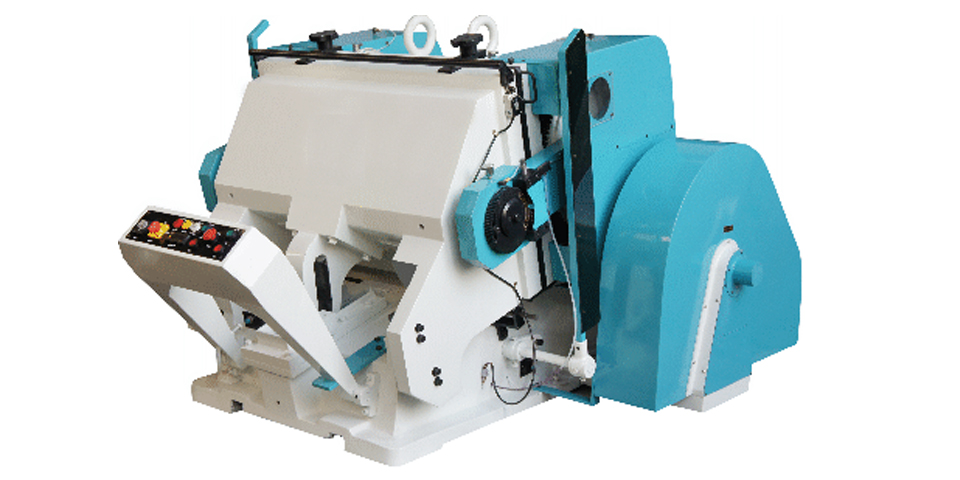

Lotus Platen presses are designed for Die-Cutting, Scoring/Creasing and Embossing on wide range of materials e.g. Card board, Corrugated Board, a variety of Plastics & Vinyls, Cork, Leather, Foam and many more.
The Salient Features are :
- Platen & Frame made of high tensile cast iron for minimum deflection under load machined finished to best industry standards, dependable for many years of strenuous use.
- The main Gears Shaft and connecting arms are mounted on Phosphorus Bronze Bushes. Ball/Roller Bearing Mounted Crank Shaft drives the Platen through a pair of high-speed Double Helical Gears (for increased strength) and two pairs of reduction Spiral Gears being lubricated by Grease/Oil.
- Impression adjustment, independent for each side, set with the help of two eccentric bushes and graduated scales.
- Electro-Magnetic Clutch & Brake System eliminates the possibility of time lag or overlap between driving and breaking. Electrically synchronized guards for maximum operator safety. One guard is located at the top of moving platen and the other is attached to the frame, the operator can stop the moving platen with the touch of Safety Guards.
- Dwell Timing Device enables settings of delay (cycle time) from 5 to 30 seconds to suit the operational needs of a particular job, a Cycle (impression) counter also provided.
TECHNICAL SPECIFICATIONS:
| MODEL | LID-26 | LID-32 | LID-37 | LID-40 | LID-42 | LID-51 | LID-62 | LID-72 |
|
Inside Chase size |
51×66cm. |
56×82cm. |
64×94cm. |
73×101cm. |
84×109cm, |
91×130cm. |
107×158cm. |
132×182cm. |
|
|
20×26in. |
22×32in. |
25×37in. |
29×40in. |
33×43in. |
36×51in. |
42×62 in. |
52×72 in. |
|
Platen Size |
58×73cm. |
63×88cm. |
71×101cm. |
81×109cm. |
91×117cm. |
99×137cm. |
114×165cm. |
142×193cm. |
|
|
23×29in. |
25×35in. |
28×40in. |
32×43in. |
36×46in. |
39×54in. |
45×65 in. |
56×76in. |
|
Elec. Load/Motor |
2.25kva/3HP |
2.25kva/3HP |
3.75kva/5HP |
3.75kva/5HP |
6kva/7.5HP |
7.5kva/10HP |
7.5kva/10HP |
11kva/15HP |
|
Impressions/Hour |
1800 |
1700 |
1500 |
1400 |
1300 |
1100 |
1000 |
800 |
|
Weight (Approx.) |
2.6 Tons |
3.4 Tons |
4.0 tons |
4.5 tons |
5.4 tons |
6.5 tons |
9.5 Tons |
12.5 Tons |
|
Floor Area (W×D) |
160×137cm. |
173×152cm. |
183×160cm. |
185×170cm. |
188×183cm. |
203×208cm. |
241×254cm. |
223×282cm. |
|
|
63×54 in. |
68×60in. |
72×63in. |
73×67in. |
74×72 in. |
80×82in. |
95×100 in. |
88×111 in. |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
