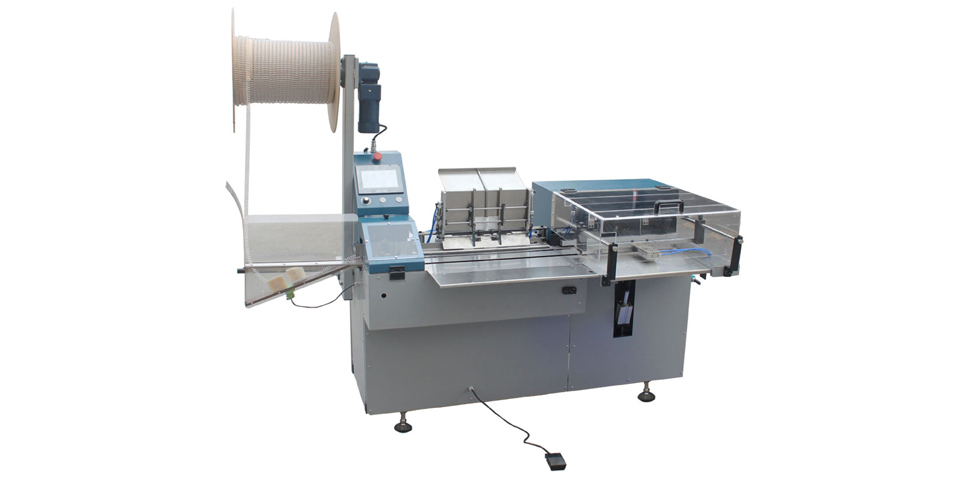

LWB-420 semi automatic binding machine is widely used for binding double loop wire notebooks, desk calendar and wall calendar etc. it can bind from size 1/4" to 1+1/4" without changing the binding tools. It will cut, convey and close the wire then drop on a conveyor. It increases the production efficiency and lowers the cost remarkably.
The Salient Features are :
- No need to charge the binding tools as the binding height is adjustable for all the sizes from 1 /4 ‘’-1+1/4’’
- It can be used to bind books or calendars with overhanging cover.
- Option for calendar hanger feeder system and conveyor.
- Controlled by computer, easy to setup.
TECHNICAL SPECIFICATIONS:
| MODEL | LWB -420 |
|
MAX BINDING SIZE |
420×420mm |
|
MIN BINDING SIZE |
70×100mm |
|
WIRE BINDING CAPACITY |
1 /4 ‘’-1+1/4’’ |
|
BINDING THICKNESS CAPACITY |
1.5mm-27mm |
|
BINDING SPEED |
600-1100books/hour |
|
POWER |
AC220V/1PH/50(60)HZ |
|
MACHINE WEIGHT |
255KG |
|
MAX HANGER LENGTH |
380mm |
|
COMPRESSED AIR PRESSURE |
6-8bar |
|
DIMENSION |
2220mm×1000mm×1800mm |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
