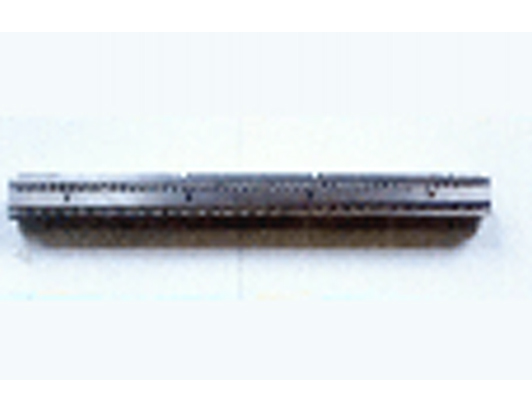

1. One punching die can punch two different holes

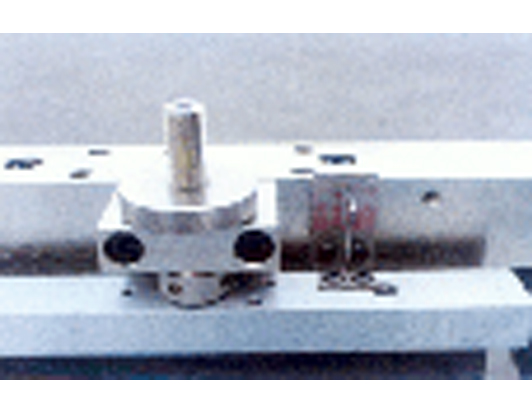

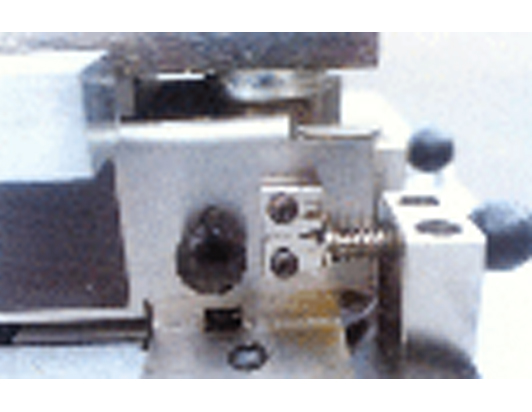

2. Binding height easily adjustable

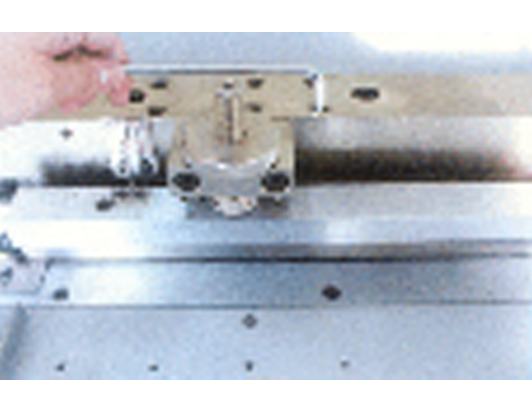

3. When punching size paper like A3,A4 or A5, the customer can loose the top tight screw to make the punching pins at both ends of thee paper not work without removing the die.
4. The punching thickness of 80gsm paper can reach 2.5mm the cardboard can reach 5mm.
LPB-600 electric punching abd binding machine is specially used for punching and closing wire which is used for table and wall calendars, notebooks and exercise books.
The Salient Features are:
- Punching and binding in one machine.
- One punching die can punch two different holes.
- Easy control, safe operation and steady running.
- Used for all kinds of plastic and paper material.
- Binding height is easily adjustable.
- Max Punching height is easily adjustable.
TECHNICAL SPECIFICATIONS:
|
Model |
LPB-600 |
|
MAX PUNCHING THICKNESS |
2.5mm(80g/m2) |
|
PUNCHING LENGTH |
600mm |
|
PUNCHING SPEED |
46 strokes/min |
|
BINDING CAPACITY |
3/16”16-1+1/4” |
|
BINDING LENGTH |
600mm |
|
POWER |
AC220V/3ph/50HZ/1.1KW |
|
DIMENSION |
850X700X1000(mm) |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
