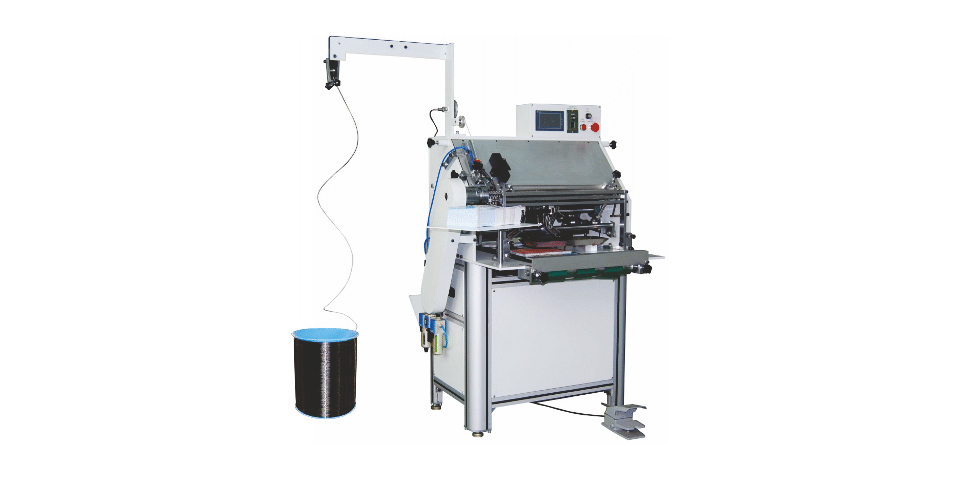

This machine used abroad binding for notebook, exercise book, hang calendar, loose-leaf, etc. It can auto wire forming spiral, auto book cluster, auto close up, auto book drop and auto book collection. It is perfect high speed spiral binding machine.
The Salient Features are :
- Forming different wires to spiral and binding onto the book at the same time.
- Through mould and tooth pitch can run different specific requirements.
- Book binding and wire forming spiral finished at the same time, convenience and efficiency.
- Up to 3 seconds per book max. speed.
TECHNICAL SPECIFICATIONS:
| MODEL | LICP-450 |
Wire Manufacturing Spec |
1 / 4’’-1’’ |
|
Maximum Thickness Binding |
20mm |
|
Max Binding Width |
450mm |
|
Min Binding Width |
100mm |
|
Working Speed n/hour |
700-1300p |
|
Power Supply |
220v/1 ph/50HZ |
|
Machine Dimensions (W×L×H) |
800mm×1400mm×1200mm |
|
Machine Weight |
238KG |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
