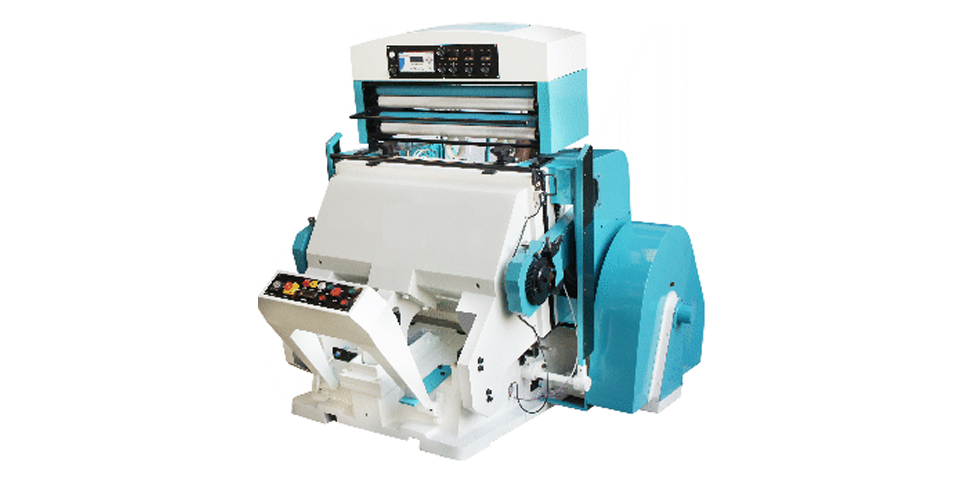

Hand feed platens now for hot foil stamping and embossing in the same machine. Most handsome and compact patronized model required minimum floor-space, minimum "MAKE READY" Time and provide sufficient production, the hot foil stamping machines available in:
- Single pull system-1 Foil film at a time.
- pull system-2 Foil film at the same time.
- Three pull system-3 Foil film at the same time.
TECHNICAL SPECIFICATIONS:
|
Model |
LI-26 |
LI-35 |
LI-40 |
LI-43 |
LI-45 |
|
Platen Sixe |
58×73cm |
63×88cm |
70×100cm |
81×109cm. |
88×113cm |
|
|
23×29in. |
25×35in. |
28×40in. |
32×43 in. |
35×45in. |
|
Inside Chase |
51×65cm |
55×80cm |
63×93cm |
73×101cm. |
80×105cm. |
|
|
20×26in. |
22×32in. |
25×37in. |
29×40in. |
32×42in. |
|
Impression/Hour (Approx) |
1500 |
1400 |
1400 |
1400 |
1300 |
|
Recommended Hot Plate Size |
15×20in. |
18×23in. |
20×30in. |
22×32 in. |
25×35in. |
|
Heating Plate Load |
3kw |
4 1/2Kw |
6 Kw |
9Kw |
9 KW |
|
Floor Space |
65×54in. |
65×56in. |
72×63in. |
73×67in. |
74×72 in. |
|
Elec. Load/Motor |
2.25kva/3HP |
2.25 Kva/3HP |
3.75 Kva/5HP |
3.75kva/5HP |
5 Kva/7HP |
|
Weight(Approx.) |
2.7tons |
3.5 Tons |
4.2 Tons |
4.7Tons |
5.6 Tons |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
