TECHNICAL SPECIFICATIONS:
|
Model |

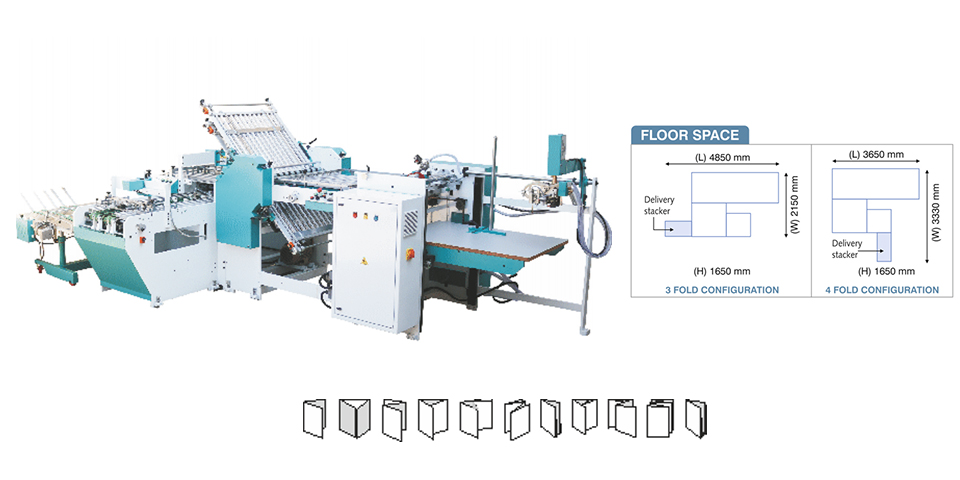

LPF –Auto 63 / 4KL |
|
Maximum Paper Size |
635 mm (W) x 940 mm (H) |
|
Minimum Paper size |
220 mm (W) x 297 mm (H) |
|
Paper GSM |
50 to 170 GSM |
|
Parallel Fold |
4 |
|
Cross Fold |
2, Optional 3rd Cross Fold |
|
Feeder Mode |
Automatic Rotary Suction Pile Feeder |
|
Pile Capacity |
600 mm |
|
Knives |
Electronic Motorized Knives |
|
Knives Stroke |
10,000 / Hr |
|
Counter |
Infrared with Batching Facility |
|
Center Perforation |
After 1st, 2nd & 3rd Fold |
|
Power |
6 H.P., 3 Phase with Neutral (Stable power condition is mandatory for this machine) |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
