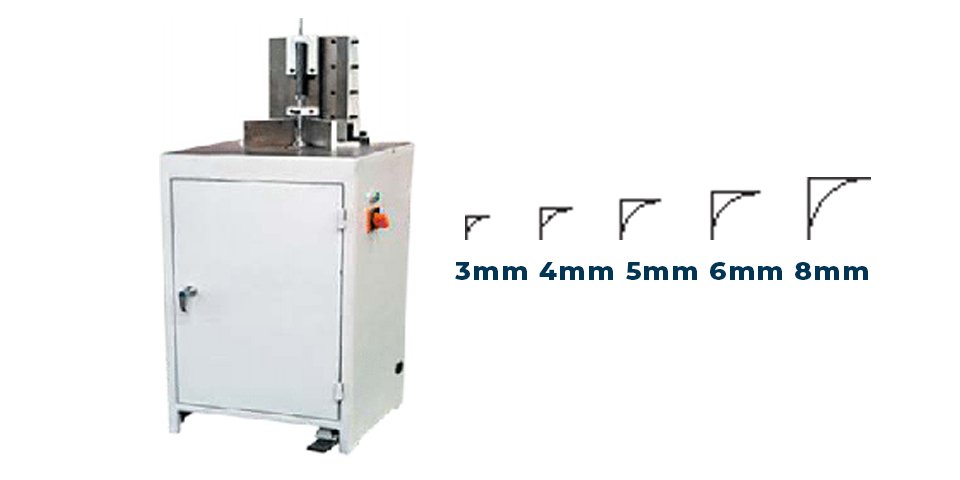

Machine is capable to cut radius of 3mm to 8mm with different tools.
TECHNICAL SPECIFICATIONS:
|
Model |
LRC-1 |
|
MAX. PAPER THICKNESS |
50MM |
|
SPEED |
130 TIMES/MINUTS |
|
STROKE OF BLADE |
90 MM |
|
SPECIFICATION OF KNIVES |
2MM, 4MM, 6MM, 8MM |
|
MAIN MOTOR |
220V 50 HX 0.37 KW, 1400R/MIN |
|
WEIGHT OF MACHINE |
130KG |
|
DIMENSIONS |
420X360X1300 MM |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
