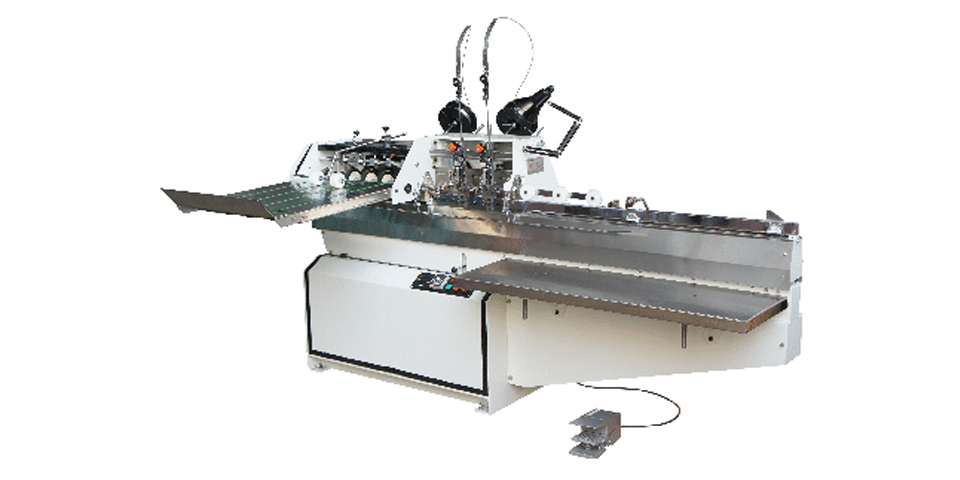

Saddle Stitcher especially designed to produce most economically both large and small volumes of booklets, pamphlets, magazines, advertising brochures notebooks etc.
The Salient Features are :
- Adjustable pinning speed of 15 to 100 cycles per minute to suit the specific needs of the job in-hand.
- These heads are adjustable from 45 to 270mm to cater to single/double-up note books/booklet etc.
- The chain conveyor device for feeding the booklets for faster production and optimum operator safety.
- The stitched booklets etc are automatically transferred to the delivery table.
- The two stitching heads (with a provision to add more heads) are standard part of the machine.
TECHNICAL SPECIFICATIONS:
|
MODEL |
LI-2HS |
|
Max Booklet size |
450 x 305 mm |
|
Min Booklet size |
127 x 89 mm |
|
Stitching Head (Adjustable Gap) |
45 to 270 mm |
|
Stitching Crown size |
13 mm |
|
Stitching Capacity Min/Max |
2 to 120 sheets (4mm) |
|
Stitching Speed (Adjustable) |
15 to 100 c.p.m. |
|
Stitching Wire Gauge |
24/26 G |
|
Electrical Load |
.75 kva /1 hp |
|
Electric Supply |
220-240, 50Hz |
|
Overall Dimensions w x d x h |
2300 x 900 x 1400cm |
|
Net Weight (unpacked) approx, |
380kgs. |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
