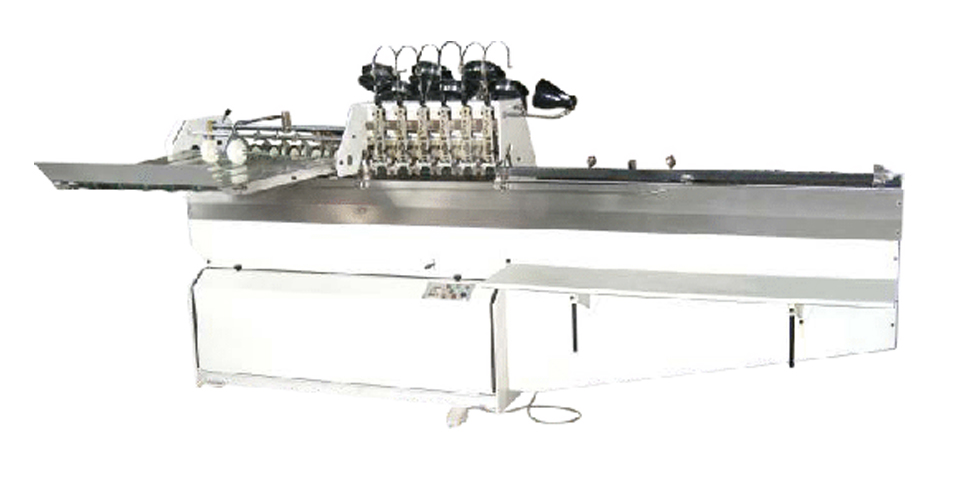

Semi-automatic saddle-stitching machine is a desirable, high efficiency book binding machine. The machine adopts the method of manual leaves building, Auto book sending, auto binding, auto receiving. It can be matched with 1 to 6 stapler head according to the need of binding specification. It is suitable for large, medium and small printing factories as well as binding factories to bind books, magazines and notebooks.
The Salient Features are :
- Adjustable pinning speed of 30 to 70 cycles per minute to suit the specific needs of the job in-hand.
- These heads are adjustable from 45 to 330mm to cater to single/double-up note books/booklet etc.
- The chain conveyor device for feeding the booklets for faster production and optimum operator safety.
- The stitched booklets etc are automatically transferred to the Delivery table.
TECHNICAL SPECIFICATIONS:
|
MODEL |
LI-6HS |
|
Max Booklet size |
590 x 305mm |
|
Min Booklet size |
127 x 89mm |
|
Stitching Head (Adjustable Gap) |
45 to 330 mm |
|
Stitching Crown size |
13 mm |
|
Stitching Capacity Min/Max |
2 to 120 sheets (4mm) |
|
Stitching Speed (Adjustable) |
30 to 70 c.p.m. |
|
Stitching wire Gauge |
25 & 26 G |
|
Electrical Load |
.75 kva/1hp |
|
Electric Supply |
220-240,50Hz |
|
Overall Dimensions w x d x h |
2900 x 1320 x 1350mm |
|
Net Weight (unpacked) approx. |
435 kgs. |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
