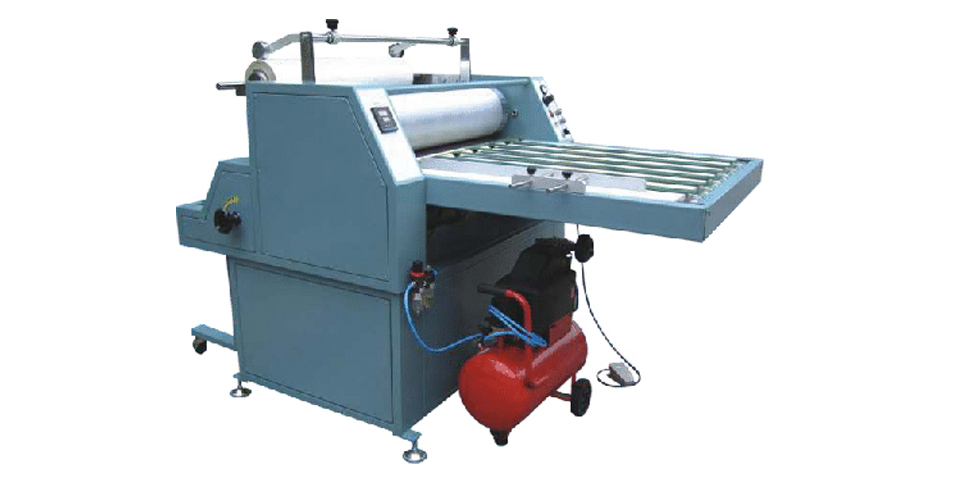

LTL series thermal laminator has big rollers and powerful pneumatic pressure which produce superb lamination results for wide range of prints.
The Salient Features are :
- Pneumatic pressure with easy adjustment
- Film Slitter
- Superb variable DC speed control
- High efficiency ultrared heating
- Cart kits for rewind
TECHNICAL SPECIFICATIONS:
|
MODEL |
LTL-26 |
LTL-32 |
|
Max. working width (mm) |
680 |
850 |
|
Max. feed speed (m/min) |
0.5-30 |
0.5-30 |
|
Air Requirement |
2CFM 100 PSI 0.25 |
2CFM 100 PSI 0.25 |
|
Laminating Temperature (0C) |
70-130 |
70-130 |
|
Power |
AC380V 50HZ 4.8 KW |
AC380V 50HZ 5.8 KW |
|
Dimensions (mm) |
1710x1140x1200 |
1710x1320x1200 |
|
Weight (kg) |
285 |
330 |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
